Reproducibility Workshop

Workshop at IEA 2025 Belfast

Florian Oswald

ejdataeditor@gmail.com

Uni Turin, Collegio Carlo Alberto, SciencesPo Paris, RES Data Editor

30 April, 2025

Agenda

What is expected from you as an author nowadays?
10 simple rules to Reproducibility compiled by the Econ Data Editors.
The README file.
Some Reproducibility Best Practices.
Let’s start a reproducible research project!

What Is Required From Authors? 🫵

What is Required from Authors?

Most (all?) journals require authors to share code and data.
Only 17 (!) journals endorse the Data and Code Availability Standard and enforce it via a Data Editor.

What Do We Expect

An advanced graduate student should be able to generate

All Figures
All Tables
All in-text numbers

with your package in the most user-friendly way possible.

A priori, our output should be exactly equal to yours. 😬

10 simple rules to Reproducibility

Computational Empathy
Make data accessible
Cite Data and how to access it
Describe software and hardware requirements
Provide all code

Explain how to reproduce your work
Provide a table of all things that can be reproduced
Include all supporting material
Use a permissible license. Any license is better than none.
Re-run everything!

The `README` File

Plain text top level file which explains everything about your package.
We have a useful template and a template generator.
Here are the minimum requirements for a README at The Economic Journal

Best Practices

Project Organisation (folder structure)
Code
Data
Output

Best Practices

Project Organisation

Folder Structure is a first order concern for your project.

Minimum Requirement

There should be a separation along:

Inputs: Data, parameters, etc
Outputs: Numbers, tables, figures
Code
Paper/Report etc

Example?

Best Practices

Good or Bad?

.
├── 20211107ext_2v1.do
├── 20220120ext_2v1.do
├── 20221101wave1.dta
├── james
│   └── NLSY97
│       └── nlsy97_v2.do
├── mary
│   └── NLSY97
│       └── nlsy97.do
├── matlab_fortran
│   ├── graphs
│   ├── sensitivity1
│   │   ├── data.xlsx
│   │   ├── good_version.do
│   │   └── script.m
│   └── sensitivity2
│       ├── models.f90
│       ├── models.mod
│       └── nrtype.f90
├── readme.do
├── scatter1.eps
├── scatter1_1.eps
├── scatter1_2.eps
├── ts.eps
├── wave1.dta
└── wave2.dta
└── wave2regs.dta
└── wave2regs2.dta

(scroll down! 😉)

Bad! 👎

Sub directories are not helpful
File names are confusing
code/data/output are not separated

Best Practices

Good 👍

.
├── README.md
├── code
│   ├── R
│   │   ├── 0-install.R
│   │   ├── 1-main.R
│   │   ├── 2-figure2.R
│   │   └── 3-table2.R
│   ├── stata
│   │   ├── 1-main.do
│   │   ├── 2-read_raw.do
│   │   ├── 3-figure1.do
│   │   ├── 4-figure3.do
│   │   └── 5-table1.do
│   └── tex
│       ├── appendix.tex
│       └── main.tex
├── data
│   ├── processed
│   └── raw
└── output
    ├── plots
    └── tables

Good.

Meaningful sub directories
top level README
code/data/output are separated

Best Practices

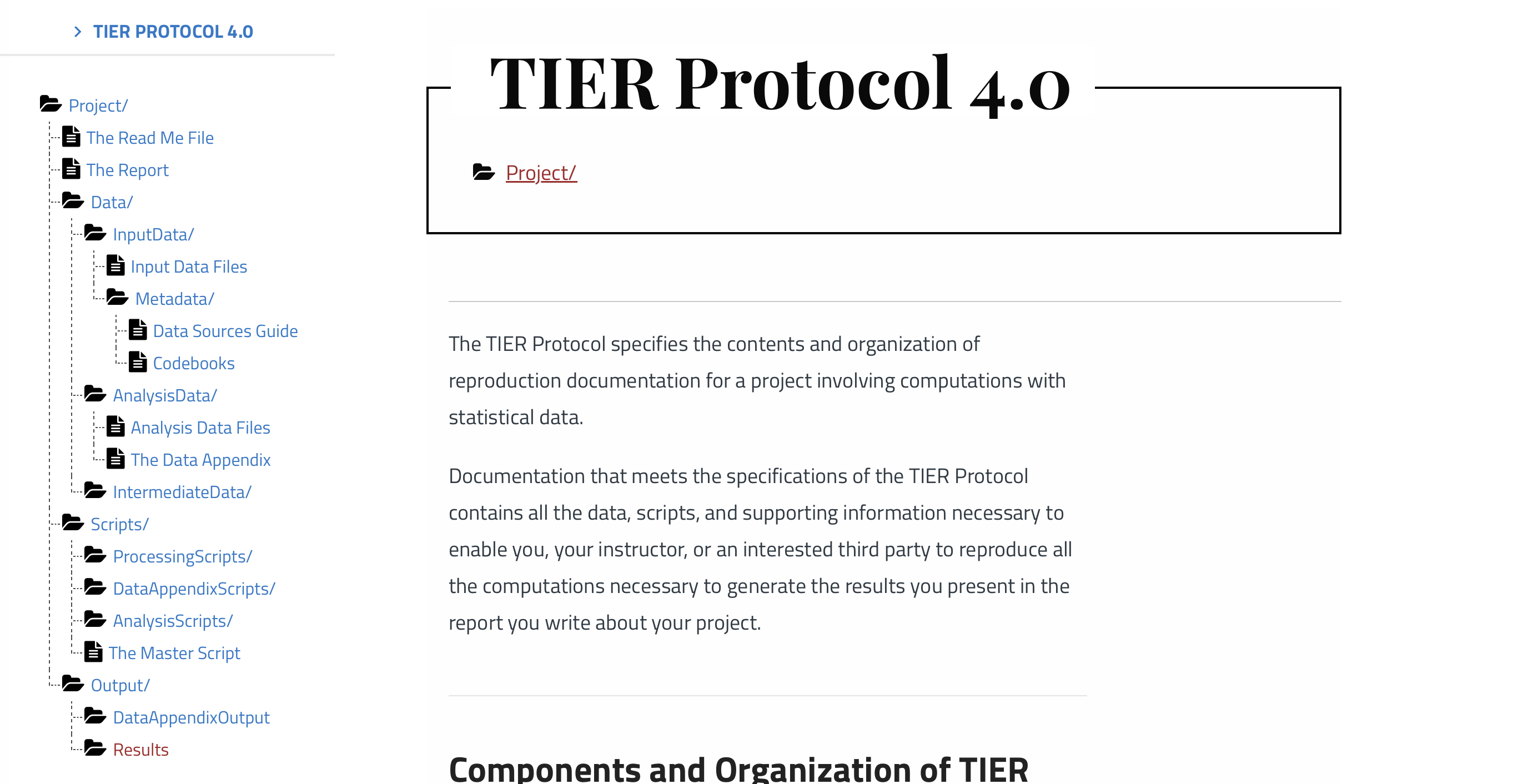

Example: TIER Protocol structure

Best Practices

Best Project Structure?

Note

There is no unique best way to organize your project: Make it simple, intuitive and helpful.

Important

Ideally your entire project is under version control.

Reproducible Code

Question:

How to write reproducible code?

👉 Huge question to answer. Let’s try with a few simple things first:

Provide a run script which…runs everything. Run it often!
No copy and paste in your pipeline! Write results to computer’s storage.
Clear instructions
Provide a clear way to create the required environment (library installation etc)

Reproducible Code

No Manual Manipulation.

Change this parameter to 0.4, then run code again 😖
I computed this number manually 😖😖

Do This!

Use functions, ado files, programs, macros, subroutines etc
Use loops and parameters
Use placeholders for file paths

In general, take all necessary steps to ensure cross-platform compatibility of your code.

file paths are such low-hanging fruit 🍇…

don’t build tables by hand

Reproducible Code

File Paths

👉 Ask the user to set the root of your project, via global variable, environment variable, or other

# in my R, I do
Sys.setenv(PACKAGE_ROOT="/Users/floswald/Downloads/your_package")

# your package uses:
file.path(Sys.getenv("PACKAGE_ROOT"), "data", "wages.csv")

# in my stata, I do
global PACKAGE_ROOT "/Users/floswald/Downloads/your_package"

# your package uses
use "$PACKAGE_ROOT/data/wages.dta"

Always use forward slashes on Stata /, even on a windows machine!

Reproducible Code

Tables

R

julia

stata

outreg2
etc

In General

A little mustache templating goes a long way…

insert {{ x }} here

Reproducible Code

Safe Environments for Running Your Code

No Guarantee

Your code will yield identical results on a different computer only if certain conditions apply.

Protected Environments

👉 You should provide a mechanism which ensures that those conditions do apply.

Reproducible Code 💻
Is Our Daily Bread 🍞

🧪 Reproducibility: Bread Baking vs. Code Execution

🍞 Baking Bread (Chemical Experiment)	💻 Running a Script (Computational Experiment)
Ingredients	Dependencies
- 500g flour	- Python 3.10
- 300ml water	- `numpy==1.24.0`
- 7g dry yeast	- `pandas==1.5.3`
- 10g salt	- `scikit-learn` (no version specified)

🧪 Reproducibility: Bread Baking vs. Code Execution

🍞 Baking Bread (Chemical Experiment)	💻 Running a Script (Computational Experiment)
Ingredients	Dependencies
- 500g flour	- Python 3.10
- 300ml water	- `numpy==1.24.0`
- 7g dry yeast	- `pandas==1.5.3`
- 10g salt	- `scikit-learn` (no version specified)
Instructions	Instructions
1. Mix ingredients	1. Clone the repository from GitHub
2. Knead dough	2. Create and activate a virtual environment
3. Let rise 1 hour at room temperature	3. Install dependencies from `requirements.txt`
4. Bake at 220°C for 30 minutes	4. Run `python train_model.py` with default config

🧪 Reproducibility: Bread Baking vs. Code Execution

🍞 Baking Bread (Chemical Experiment)	💻 Running a Script (Computational Experiment)
Ingredients	Dependencies
- 500g flour	- Python 3.10
- 300ml water	- `numpy==1.24.0`
- 7g dry yeast	- `pandas==1.5.3`
- 10g salt	- `scikit-learn` (no version specified)
Instructions	Instructions
1. Mix ingredients	1. Clone the repository from GitHub
2. Knead dough	2. Create and activate a virtual environment
3. Let rise 1 hour at room temperature	3. Install dependencies from `requirements.txt`
4. Bake at 220°C for 30 minutes	4. Run `python train_model.py` with default config
Expected Outcome	Expected Outcome
- Well-risen, airy loaf of bread	- Consistent training accuracy and saved model

⚠️ What Could Possibly Go Wrong?

🍞 Bread Baking (Chemical Experiment)	💻 Running a Script (Computational Experiment)
1. Yeast Inactivation	1. Library Version Mismatch
Water too hot (e.g., 60°C) kills the yeast. No rise.	`scikit-learn` was updated → `train_test_split()` behaves differently, causing changes in results.

⚠️ What Could Possibly Go Wrong?

🍞 Bread Baking (Chemical Experiment)	💻 Running a Script (Computational Experiment)
1. Yeast Inactivation	1. Library Version Mismatch
Water too hot (e.g., 60°C) kills the yeast. No rise.	`scikit-learn` was updated → `train_test_split()` behaves differently, causing changes in results.
2. Cold Proofing	2. Different OS / File System
Room too cold (e.g., 15°C) → dough rises too slowly.	Path handling fails on Windows vs. Linux (`\` vs. `/`), or line endings cause script errors.

⚠️ What Could Possibly Go Wrong?

🍞 Bread Baking (Chemical Experiment)	💻 Running a Script (Computational Experiment)
1. Yeast Inactivation	1. Library Version Mismatch
Water too hot (e.g., 60°C) kills the yeast. No rise.	`scikit-learn` was updated → `train_test_split()` behaves differently, causing changes in results.
2. Cold Proofing	2. Different OS / File System
Room too cold (e.g., 15°C) → dough rises too slowly.	Path handling fails on Windows vs. Linux (`\` vs. `/`), or line endings cause script errors.
3. High Altitude Baking	3. Hardware Differences (e.g., CPU vs. GPU)
Lower pressure expands gas too fast; loaf collapses.	Numerical precision differs → inconsistent model outputs.

⚠️ What Could Possibly Go Wrong?

🍞 Bread Baking (Chemical Experiment)	💻 Running a Script (Computational Experiment)
1. Yeast Inactivation	1. Library Version Mismatch
Water too hot (e.g., 60°C) kills the yeast. No rise.	`scikit-learn` was updated → `train_test_split()` behaves differently, causing changes in results.
2. Cold Proofing	2. Different OS / File System
Room too cold (e.g., 15°C) → dough rises too slowly.	Path handling fails on Windows vs. Linux (`\` vs. `/`), or line endings cause script errors.
3. High Altitude Baking	3. Hardware Differences (e.g., CPU vs. GPU)
Lower pressure expands gas too fast; loaf collapses.	Numerical precision differs → inconsistent model outputs.
4. Too Much Salt	4. Missing or Incorrect Environment Variable
Excess salt suppresses yeast → poor fermentation.	`DATA_DIR` not set → script fails or loads wrong input silently.
Result: Flat, dense, or failed bread	Result: Different outputs, errors, or failed experiments

Reproducible Code

Safe Environments for Running Your Code

At a minimum, your README lists the exact computing environment:
OS, software and which version used (R 4.1, stata 17/MP, matlab 2023b, GNU Fortran (Homebrew GCC 13.2.0))
Libraries and which exact version used (ggplot2 1.3.4, outreg 2, numpy 1.26.4, boost 1.8.3 )
Stata: install all libraries into your replication package.

👉 Virtual Environments can help.

Reproducible Code

Provide a Virtual Environment

python via anaconda:

conda create -n py27 python=2.7 numpy=1.15.4 matplotlib
conda activate py27

There are other virtual env managers in python

R via renv

# in your existing project:
renv::init() # creates local library
renv::snapshot() # commit
renv::restore()  # checkout

julia built-in Pkg manager:

(@v1.10) pkg> activate .
  Activating new project at `~/my-project`

(my-project) pkg> add DataFrames GLM
# created 2 files in `~/my-project`
# tracking all dependencies

Docker 🐳 container. This provides a fully specified virtual machine (i.e. a dedicated computer for your project)

Reproducible Code

Stata Virtual Environment

Include a version xyz statement in master script.
User contributed libraries are not versioned.
You must install all libraries next to your project code. If not, ssc install somelib will install an incompatible version a few years later.
Here is a _config.do script forcing stata to use only libraries installed in a given location.
Excellent guidance by Julian Reif
We will do this later on!

Reproducible code

Note

Such mechanisms can reduce version conflicts amongst your dependencies. To the extent that all versions of those dependencies are still available, this guarantees a stable computing environment.

Data

Always keep your raw data intact (i.e. read-only).
Generate separate analysis datasets to perform analysis.
Datasets change over time, keep a record of the date and versions you obtained. It might be difficult to obtain it in the future.

What about Confidential Data?

If we have instructions for direct access, we try (time limit: 30 mins)
If not, try to get access to authors/data provider’s machine (i.e. their screen)
If not, data provider may certify results for us.
If not, must provide simulated version of data.

Output

Write both tables and figures to local storage (don’t just display on the console!)
The gold standard: include this table in your readme.

Output in Paper	Output in Package	Program to execute
Table 1	`outputs/tables/table1.tex`	`code/table1.do`
Figure 1	`outputs/plots/figure1.pdf`	`code/figure1.do`
Figure 2	`outputs/plots/figure2.pdf`	`code/figure2.do`

Output

keep a full pipeline intact at all times: run_all()
have a dedicated output folder which you delete frequently
version output: during revisions, create separate locations for output, rev1, rev2 etc, so you know exactly what version of code made which output.

Break ☕️ 🍰

Hands On Session 💪🏽

10 Steps till Reproducibility

Step 1: Project Setup and Data Acquisition

Create a folder structure: data, code, output, paper
Create README.md at root of this structure
download example data from zenodo
- save data citation
- copy data into data/raw
- set data to read only

Step 2: Stata Setup

Create folder code/stata
Create a run.do file
Set up a config.do as well.

Here is an outline of a potential run.do file:

run.do
    - set global variables: paths, full/partial data etc
    - call config.do
        - tell stata where to look for add-ons
    - run analysis

Stata does not crash upon error in nested do-file: must look at logs.

Step 3: Stata Analysis Code

Always operate full pipeline via run.do (can abbreviate)
read, transform, store data
do analysis proper
Never build a table by hand!

Step 4: Document Output in `README`

Add used software packages to readme
Add OS and stata version to readme
Create table in readme indicating where which piece of output can be found

Step 5: Write a Paper!

Paper should reference objects in /output/
Delete /output/ and try to recompile: error. Good!
Regenerate /output/
Add total runtime to readme.

Step 6: Add `R` Code

Create /code/R/
Add R script

Step 7: Incorporate R output in Paper

Paper should reference objects in /output/
Recompile paper

Step 8: Record R package environment

How to make sure we freeze the R package environment?
What about upstream dependencies?
add renv to /code/R/ folder.
Re-run.

Step 9: Add R package citations

Cite the software packages you used!
Very easy with R.

Step 10: Recompile Paper

and submit to a great journal like the EJ! 😉

Reproducibility Workshop

Agenda

What Is Required From Authors? 🫵

What is Required from Authors?

10 simple rules to Reproducibility

The README File

Best Practices

Best Practices

Best Practices

Project Organisation

Best Practices

Good or Bad?

Bad! 👎

Best Practices

Good 👍

Good.

Best Practices

Example: TIER Protocol structure

Best Practices

Best Project Structure?

Reproducible Code

Reproducible Code

Reproducible Code

Reproducible Code

File Paths

Reproducible Code

Tables

R

julia

stata

In General

Reproducible Code

Safe Environments for Running Your Code

Reproducible Code 💻 Is Our Daily Bread 🍞

🧪 Reproducibility: Bread Baking vs. Code Execution

🧪 Reproducibility: Bread Baking vs. Code Execution

🧪 Reproducibility: Bread Baking vs. Code Execution

⚠️ What Could Possibly Go Wrong?

⚠️ What Could Possibly Go Wrong?

⚠️ What Could Possibly Go Wrong?

⚠️ What Could Possibly Go Wrong?

Reproducible Code

Safe Environments for Running Your Code

Reproducible Code

Provide a Virtual Environment

Reproducible Code

Stata Virtual Environment

Reproducible code

Data

Data

What about Confidential Data?

Output

Output

Output

Break ☕️ 🍰

Hands On Session 💪🏽

Step 1: Project Setup and Data Acquisition

Step 2: Stata Setup

Step 3: Stata Analysis Code

Step 4: Document Output in README

Step 5: Write a Paper!

Step 6: Add R Code

Step 7: Incorporate R output in Paper

Step 8: Record R package environment

Step 9: Add R package citations

Step 10: Recompile Paper

End 🍻

The `README` File

Reproducible Code 💻
Is Our Daily Bread 🍞

Step 4: Document Output in `README`

Step 6: Add `R` Code
